SecureWave 10-70

• With SecureWave 2-way Wireless Technology
• Shipped with slim-line keypad
• Can map 70 wireless detectors into system
• 106 wired zones with zone expanders & ID modules
• 8 Blocks + 1 Common Area
• 5 on-board outputs (3 High Current)
• Up to 217 outputs (fully expanded system)
• 64 Users
• Housing: Polycarbonate
• Hinged lid
• High-speed keypad/expander bus
• USB connector
• EN50131-1 (Grade 2)

Technical details:

• 230Vac +/- 10%, 50 Hz
• Out: 1.5A total @ 13.7Vdc +/- 5%
• -10 to + 40°C
• Size: 236mm x 360mm x 86mm

Contact us about this product

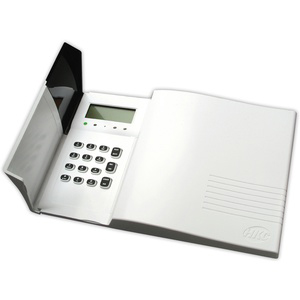

Quantum 70

• 70 two-way wireless Detectors*
• 2 two-way wireless Internal Sirens*
• 2 two-way wireless External Sirens*
• 32 two-way wireless Keyfobs*
• 32 Users
• 2 Block Capability
• Up to 2 Wireless Repeaters
• 1 Hardwired Zone (expandable to 10 point ID devices)
• Hardwired SABB External Bell Output
• 999 event engineer log
• Integrated Keypad
• Integrated Internal Siren
• Integrated Dialler with Modem/Voice/SMS Capability
• Integrated DSL filter on Dialler
• Integrated backup Battery
• Integrated Speaker with Extensive Voice library
• Ability to convert zone descriptions to voice
• Serial Interface
• USB (device)
• Full Suite of End Devices including Contacts, Inertia Sensors, PIRs, Smoke, Heat and Carbon Monoxide Detectors
• Audible Annunciation of Smoke, Heat and Carbon Monoxide Detection
• Proximity Reader Version
• GSM Unit with Contact ID, SIA and XSIA Reporting to Central Station
• Also supports Voice/SMS
• EN 50131-1 Grade 2, Class II
• Compatible with RF Range Tester
• *Up to 80 wireless devices in total

Contact us about this product

SecureWave 20-140

• With SecureWave 2-way Wireless Technology
• Shipped with slim-line keypad
• Shipped with 10-zone expander
• Can map 70 wireless detectors into system
• 176 wired zones with zone expanders & ID modules
• 8 Blocks + 1 Common Area
• 5 on-board outputs (3 High Current)
• Up to 231 outputs (fully expanded system)
• 64 Users
• Housing: Polycarbonate
• Hinged lid
• High-speed keypad/expander bus
• USB connector
• EN50131-1 (Grade 2)

Technical details:

• 230Vac +/- 10%, 50 Hz
• Out: 1.5A total @ 13.7Vdc +/- 5%
• -10 to + 40°C
• Size: 236mm x 360mm x 86mm

Contact us about this product

Slimline Wireless Keypad

• With SecureWave 2-way Wireless Technology
• Full voice messaging
• Graphics LCD
• Housing: ABS
• Hinged lid & hinged cover
• High-speed keypad bus
• Proximity version available
• EN50131-3 (Grade 2)

Technical details:

• Input: 13.7Vdc
• -10 to + 40°C
• Size: 167mm x 125mm x 27mm

Contact us about this product
